Motorcycle Odometer Gauge Digital Motorcycle Tachometer Speed Meter Tachometer RPM Gauge Fuel Gauge Odometer Display Dashboard Panel Universal

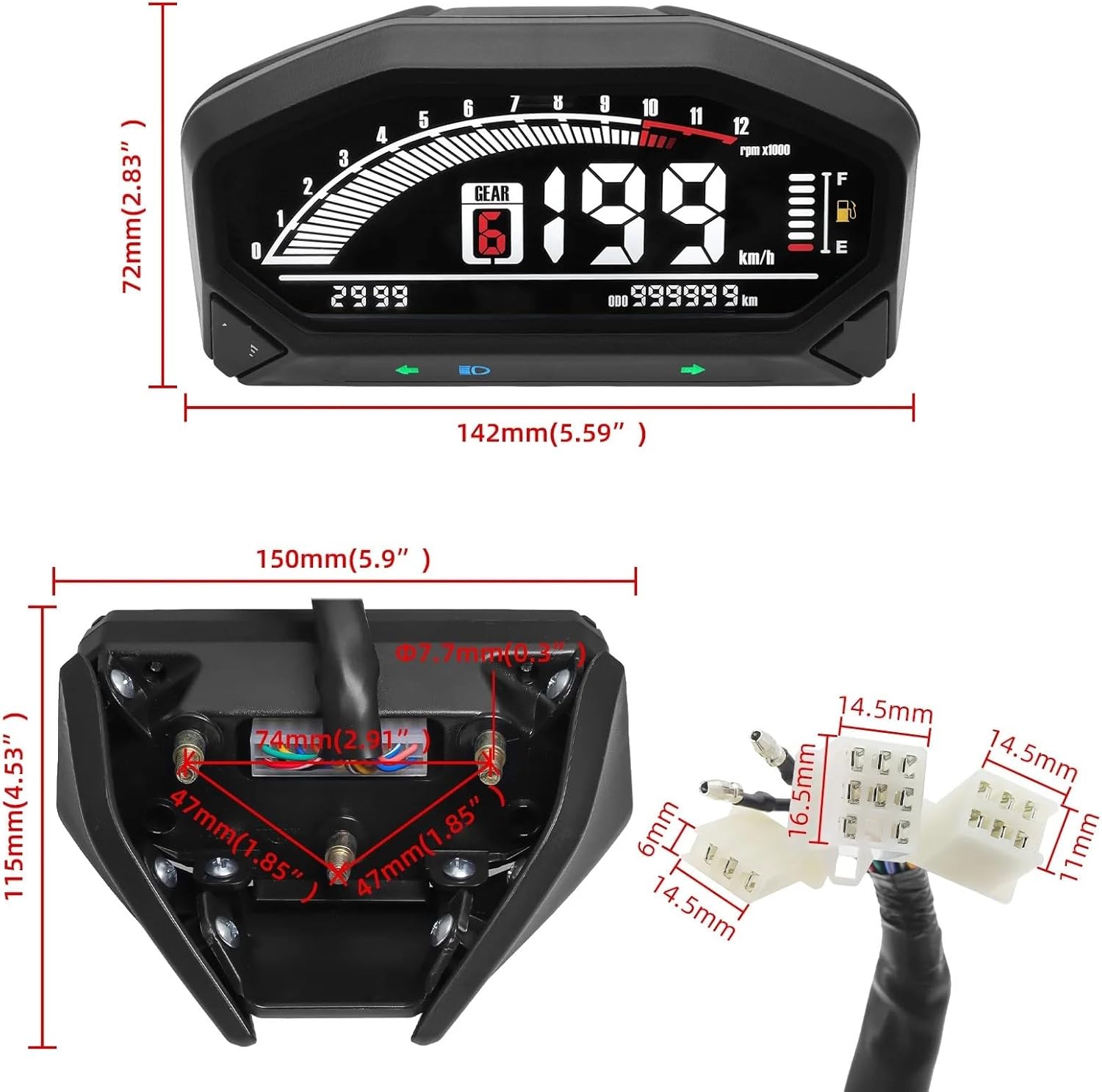

Before purchasing, please make sure the product size is suitable for your motorcycle vehicleDigital Motorcycle Tachometer Speed Meter Tachometer RPM Gauge Fuel Gauge Odometer Display Dashboard Panel Universal Description:1.Max speed : 199km/h2.Max trip: 999.9km3.Max rpm:1200 rpm4.green wire ~negative power5.yellow ~counter6.blue~high beam7.orange~left turning light8.green red~N gear9.brown red~injection engine10.light blue~right turning light11.red~speed12.brown white~RPM13.~1 gear15.red white~extra power16.black~ positive electrode17.yellow white~fuel display18.~6 gear19.brown white~5 gear20.yellow red~4 gear21.green black~3 gear22.blue red~2 gearEntry setting mode:1. Disconnect all power supply2. Press setting button3. Connect power supply4. Entry parameter setting pageNumber of Signal setting:1. Entry number of signal setting mode,number of signal flashing2. Short press to switch between 1 to 12 signals3. Long press to entry tyre perimeter setting modeTyre perimeter setting:1. Entry tyre perimeter setting mode, matching digit flashing2. Short press for digit switches between 1~2 and otherdigits switches between o~93. 1~3 times long press for entry next digit,fourth long press forentry fuel gauge setting pageFuel setting:1. Entry fuel gauge setting mode, matching digit flashing2. Short press to switch between 2 and 3,2 means 2 lines and 3means 3 lines3. Long press to entry number of engine cylinder setting pageNumber of engine cylinder setting:1. Entry number of engine cylinder setting mode,matching digitflashing2. Short press to switch between 1,2 and 43. Exit parameter setting mode,return to normal .Automatic exit parameter setting mode:1. After entry parameter setting mode,if not button has beenpressed in 1 minute, the exit parameter setting mode,return to normal .Package 11X Only GaugePackage 21X Gauge with SensorPackage 31X Gauge with Sensor and bracket

• Application：Digital Motorcycle Tachometer Speed Meter Tachometer RPM Gauge Fuel Gauge Odometer Display Dashboard Panel Universal
• Function: motorcycle odometer improves safety, and accurate display of speed and mileage, improve driving safety.
• Design: the motorcycle odometer has a beautiful and novel appearance design, which can decorate your motorcycle
• INSTALLATION: The method of installing and removing the odometer is simple and easy to operate, no drilling and cutting required.
• Service: if you need any advice, please feel free to contact us!
